Additional Features
USB connectivity

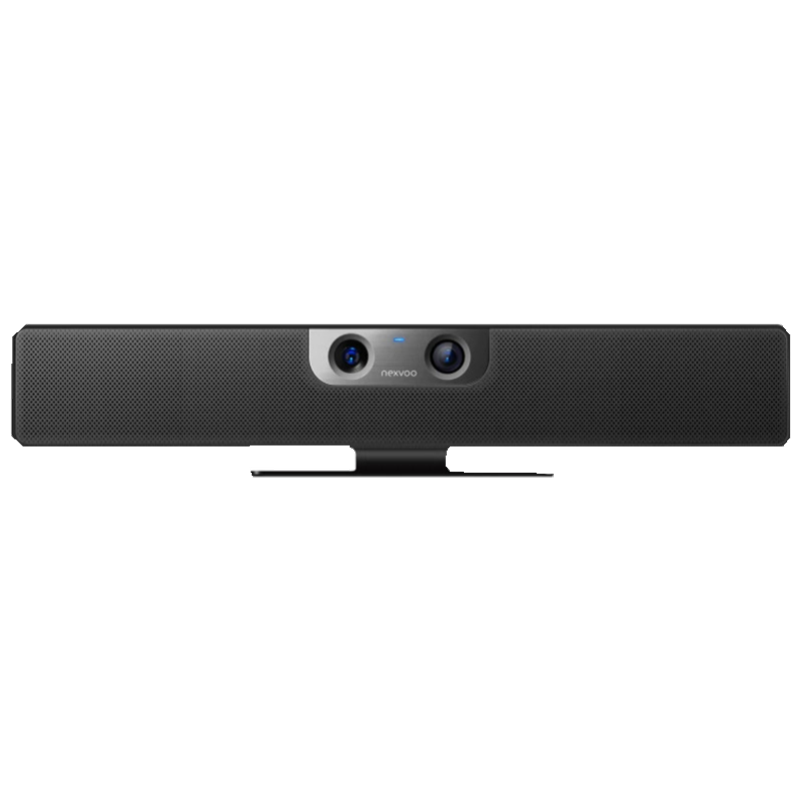

N120W can support the connection of PC via USB-C cable, as a USB device of the PC, provide high-quality audio and video capture capabilities for the video conferencing application on the PC
Compatible With Most Video Conference Applications
Users are free to use the any video conferencing applications on desktop, including Zoom, Microsoft Teams, Google Meet, etc.
Realistic sound quality
The speaker can bring realistic sound, so that everyone can feel full, excellent sound
Specification
Package Includes
• DoubleView N120W
• Cable package
• Remote Control
• Wall mount
• User manual
Video Standards andProtocols
• H.264, H.265, VP8
Video Output
• 3 x HDMI
• Compatible with touch screen
• 1080p@60fps video output
Dual Camera System
• Ultra wide-angle camera
- 8M pixels
- f/1.8 aperture
- 5x digital zoom / EPTZ
- 120° FOV
- Ultra HD 2160p (4K) capture
resolution
• Telephoto camera
- 2M pixels
- f/2.0 aperture
- 2x digital zoom
- 58° FOV
• AI smart framing
- Auto Framing
- Speaker Tracking
- Face Recognition
• Camera indicator
Audio Output
• Speakers, 100dB@1m
• 1 x 3.5mm line-out
Content Sharing
• Apple Airplay
• Miracast
• Whiteboard
Audio
• Audio processing technology
- Background noise elimination
technology
- Beamforming directional pickup
technology
- Multi-channel echo cancellation
processing technology
- Multi-channel de-reverberation
technology
- Long-distance full-duplex pickup
technology
- Automatic gain control
• Mute/unmute control
• Audio codec: G.711, G.729AB,
G.729A, G.722.2 (AMR-WB)
Operating System and Platform
• Android 9.0
• Multimedia desktop design
• Support video conferencing
systems, including:
- Zoom
- Microsoft Teams
- etc.
• USB Mode
- Provide USB camera for PC,
up to 4K@30fps
- Provide USB Audio for PC
Audio Input
• 8 MEMS microphone arrays
• 1 x 3.5mm line-in
• 8 m / 26 feet high-quality pickup
distance
Other Physical Properties
• Power adapter: AC100~240V input,
DC12V/2A
• RAM/ROM: 4G / 32G
• USB output: DC 5V/500mA
• Dimensions (H.W.D):
- 505 x 80 x 52.6 (MM)
- 19.88 x 3.15 x 2.07 (Inches)
• Weight: 1.8 kg / 3.97 lbs
• Operating environment humidity:
15~80%, non-condensing
• Operating environment temperature:
0~40°C
• Storage temperature: -30~70°C
Network and Security
• IPv4/IPv6
• Automatic MDIX
• Dynamic bandwidth allocation
• Simple Certificate Enrollment
Protocol (SCEP)
• Active Directory external
authentication
Other Interfaces
• 2 x USB-A (2.0)
• 1 x USB-C
• 1 x Ethernet port
• Bluetooth 4.2
• WIFI 802.11b/g/n/ac
• 1 x DC Power
• 1 x Reset key
• Kensington security lock
Warranty Information
• 2-year limited hardware
