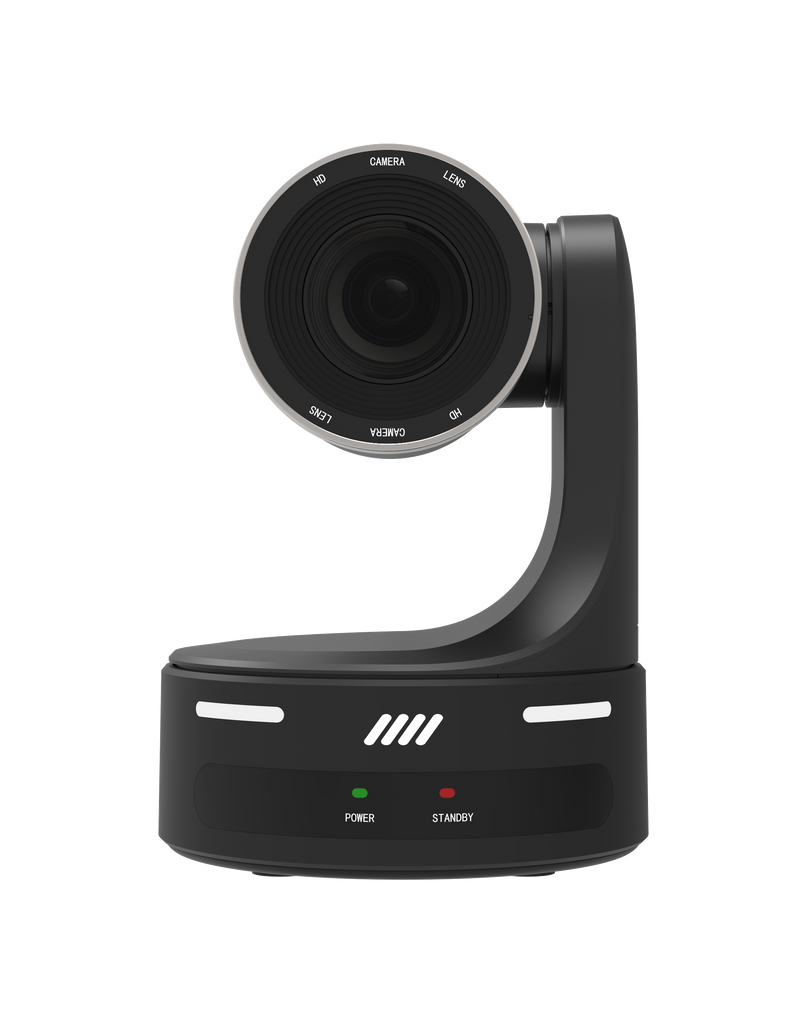

20x Optical 1080P FHD USB PTZ Camera for Video Conferencing and Online Teaching


N420 1080P HD USB PTZ Camera delivers brilliantly sharp image resolution, outstanding color reproduction, and exceptional optical accuracy.

20x Optical Zoom


N420 has 1080P HD resolution and wide-angle optical zoom lens: 20x optical zoom and 16x digital zoom, giving super clear image to the customer, suitable for video conferencing in all kinds of boardrooms and extra-large meeting rooms.



Remote Control


N420 supports Sony VISCA, PELCO-P, PELCO-D, NDI protocols. The PTZ camera can be controlled using RS232, RS485, network and USB interfaces.

Multiple Ports


The USB PTZ camera with NDI,3G-SDI, HDMI, USB outputs enable delivering 1080P video simultaneously, compatible with different applications over HDMI and IP, support both H.264, and H.265 encoding.


Additional Features

1080P HD resolution


N420 delivers up to 1080p@60 Ultra HD

video resolution, equipped with HDR and 3D noise reduction features.


Daisy Chain


7 PTZ cameras connect with 1 controller via VISCA In and VISCA out.

Full coverage of the PTZ


This optical PTZ camera has smooth PTZ mechanical design, accurate and fast pan tilt zoom movement, and 200 presets.


Specification

Camera

• Sony 1/2.8-inch 2.07MP sensor

• Scanning mode: Progressive scan

• F1.8-2.8 Aperture

• Zoom

 - N420: 20x optical zoom + 16x digital zoom

• Field of view

 - N420: FOV(H): 58.7°- 3.2°,

 FOV(V): 33°- 1.8°

• Min LUX: 0.5 Lux @ (F1.8, AGC ON)

• Shutter Speed: 1/25s ~ 1/10000s

• White Balance

 Auto, Manual, Indoor, Outdoor, One Push

• 2D/3D Noise Reduction

• SNR: ≥ 55dB

• HDR

• Aspect ratio 16:9

• Focus: Auto / Manual

• Support Backlight Compensation

• Support Image Flip

• Support Video Freeze

• Pan Rotation Angel

 - Pan: -170° ~ +170°

 - Tilt: -30° ~ +90°

• Pan Rotation Speed

 - Pan: 0.1° ~ 90°/s

 - Tilt: 0.1° ~ 90°/s

• Preset: 200

• Preset accuracy: 0.1°±10%

• Video Format

 - HDMI

 1080p/60, 1080p/50, 1080p/59.94,

 1080p/30, 1080p/29.97

 1080i/60, 1080i/50, 1080i/59.94

 720p/60, 720p/50, 720p/59.94

 - 3G-SDI

 1080p/60, 1080p/50, 1080p/30,

 1080p/29.97, 1080p/59.94, 1080p/25

 1080i/60, 1080i/50, 1080i/59.94

 720p/60, 720p/50, 720p/59.94

USB Features

• Operating System

 - Windows 7, 8.1, 10, 11

 - Mac OS

 - Linux

 - Android

• Video Encoding Standard

 YUY2 / MJPEG / H.264 / H.265

• Video Format:

 - YUY2: 1080p/30 (Maximum)

 - H.264 AVC: 1080p/60 (Maximum)

 - H.264 SVC: 1080p/60 (Maximum)

 - MJPEG: 1080p/30 (Maximum)

 - H.265: 1080p/60 (Maximum)

• Support USB Audio

• UVC1.1-1.5, UAC1.0

• Support UVC PTZ Control


General Specifications

• Input Voltage: DC 12V

• Input Current: 1.0A(Maximum)

• Power Consumption: 12W(Maximum)

• Operating Temperature

 32~104°F (0-40°C)

• Storage Temperature

 -13~160°F (-25~70°C)

• Relative humidity:

 5~95%, noncondensing

• Dimension (W x H x W)

 - 6.34 x 5.24 x 7.13 (Inches)

 - 161 x 133 x 181 (mm)

• Color: Black

• Weight: 2.4 lbs / 38.8 oz (1.1 kg)

Connector

• HD Output

 - HDMI x 1, HDMI 1.4

 - 3G SDI x 1, SMPTE-274M(Level A), SMPTE-296M

• Network Port

 LAN:10M/100M/1000M, POE(IEEE802.3at)

• Audio Port

 3.5mm Audio Port x 1, Line In

• USB

 USB-B x 1, USB 3.0/2.0

• Communication Port

 - RS232 In x 1, 8-pin mini DIN,

Maximum distance: 30 meters, VISCA /

Pelco-D / Pelco-P protocol

 - RS232 Out x 1, 8-pin mini DIN,

Maximum distance:

 30 meters, VISCA / Pelco-D /

Pelco-P protocol

 - RS422 In x 1, Compatible with RS485,

5-pin Phoenix port,

Maximum distance: 1200 meters,

VISCA/Pelco-D/

 Pelco-P protocol

• Power Port

 JEITA Type (DC IN 12V)


Package Contents

• Nexvoo N420 Camera

• Power Adapter (DC 12V)

• IR Remote Control

• User Manual

• RS-232 Cable

• HDMI Cable


Warranty

Two-year return to factory parts and labor
